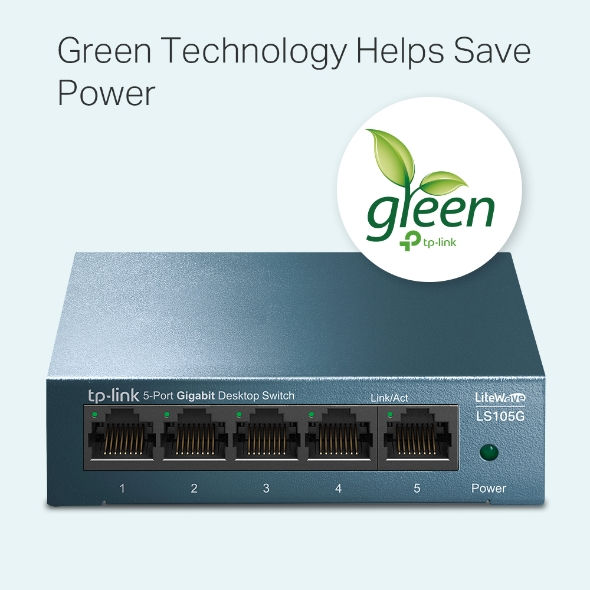

TP‑Link LS105G – 5‑Port 10/100/1000Mbps Desktop Switch
A compact, energy‑efficient Gigabit switch designed for small offices, home networks, and plug‑and‑play expansion. With five auto‑negotiation ports, steel housing, and QoS support, the LS105G delivers reliable, high‑speed wired connectivity with zero configuration required.
Key Specifications
Ports: 5× 10/100/1000Mbps RJ45 (Auto‑Negotiation, Auto‑MDI/MDIX)
Technology: Green Ethernet, IEEE 802.3X Flow Control
Housing: Durable steel, desktop or wall‑mountable
QoS: 802.1p/DSCP Quality of Service
Power Supply: 5V DC / 0.6A
Max Power Consumption: 2.776W
Dimensions: 99.8 × 98 × 25 mm
Installation: Plug and play, no configuration needed
Detailed Specifications
Hardware Features
Standards & Protocols: IEEE 802.3i / 802.3u / 802.3ab / 802.3x, IEEE 802.1p
Interface: 5× 10/100/1000Mbps Auto‑Negotiation, Auto‑MDI/MDIX ports
Fan Quantity: Fanless (silent operation)
External Power Supply: 5V DC / 0.6A adapter
LED Indicators: System Power, Link/Activity per port
Dimensions: 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption: 2.776W (220V/50Hz)
Max Heat Dissipation: 9.466 BTU/h
Housing: Steel, desktop or wall‑mountable
Performance
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1 Mb
Jumbo Frame: 16 KB
Software Features
Advanced Features:
Green Ethernet Technology
IEEE 802.3X Flow Control
802.1p/DSCP QoS
Transmission Method: Store and Forward
Others
Certifications: CE, FCC, RoHS
Package Contents:
LS105G 5‑Port Gigabit Desktop Switch
Power Adapter
Installation Guide
Environment:
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10% ~ 90% (non‑condensing)
Storage Humidity: 5% ~ 90% (non‑condensing)
Why Choose the TP‑Link LS105G?
Gigabit speeds for smooth file transfers, streaming, and office productivity
Zero‑configuration setup — simply plug and play
Energy‑efficient design that reduces power consumption
Durable steel housing built for long‑term reliability
Silent, fanless operation ideal for home or office
QoS support ensures stable performance for priority devices
