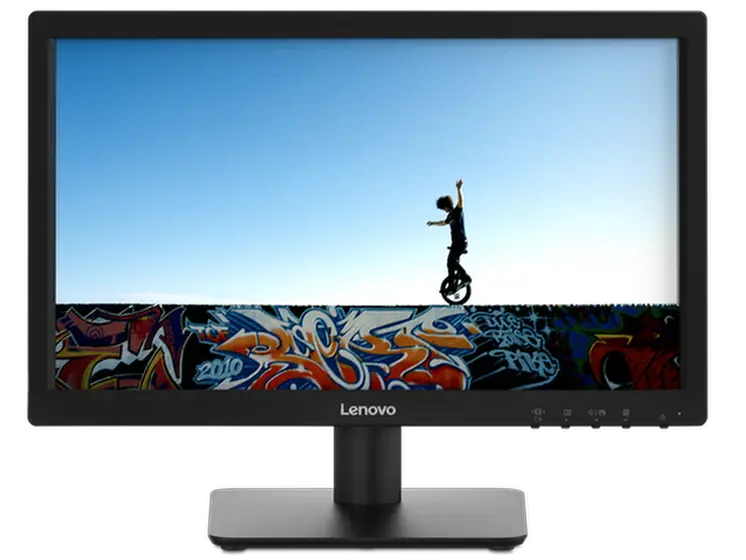

Lenovo D19-10
The Everyday Workhorse
No Frills Attached
Made for small businesses and industrial applications, as well as home use, the Lenovo D19-10 is a simple and affordable display solution. It has a minimalistic design that is both subtle and efficient. Designed to be an everyday workhorse, the Lenovo D19-10 is focused on offering a hassle-free user experience. As an essential device, it does not skimp on necessary features that can enhance viewing experiences, offering everything expected from a compact monitor.
18.5" 1366x768 TN display, Anti-glare 16:9
5 ms response time
60Hz refresh rate
600:1, 72% NTSC, 8-bit
-5° to +22° tilt stand
TÜV Rheinland® Low Blue Light
Panel Specifications
Panel Type: Twisted Nematic (TN)
Backlight: WLED
Display Size: 18.5 inches
Max View Area (WxH): 409.8 x 230.4 mm
Resolution: 1366 x 768
Aspect Ratio: 16:9
Pixel Pitch: 0.300 x 0.300 mm
Dot / Pixel Per Inch: 85 dpi
Brightness (Typical): 200 cd/m²
Contrast Ratio: 600:1
Viewing Angle (H / V): 90° / 65°
Response Time: 5 ms
Refresh Rate: 60Hz
Color Gamut: 72% NTSC
Color Support: 16.7 Million
Screen Surface Treatment: Anti-glare
Operating System Compatibility
Windows® 7 Support
Windows 10 Support
Power Supply
Power Consumption (Typical / Max): 9W / 12W
Sleep / Off mode: <0.3W
Switch-off Mode: <0.3W
Voltage Required: AC 100 to 240 V (50-60Hz)
Design
Mechanical
Bezel Width (Side): 18.52 mm
Cable Management: Support
Case Color: Black
Dimensions
Unpacked Head Only: 448.4 x 48.5 x 274.5 mm (17.65 x 1.91 x 10.81 inches)
Unpacked with Stand: 448.4 x 179.88 x 344.66 mm (17.65 x 7.08 x 13.57 inches)
Packaging Dimensions (WxDxH): 516 x 122 x 345 mm (20.31 x 4.80 x 13.58 inches)
Weight
Monitor Head Only: 2.04 kg (4.50 lbs)
Monitor With Stand: 2.36 kg (5.20 lbs)
Packaging Weight: 3.38 kg (7.45 lbs)
Mounting: Supports VESA mount 100mm
Stand: Supports -5° to +22° tilt
What’s in the Box
1x HDMI® cable (1.8m) (AP only)
1x Power cable
1x VGA cable (1.8m) (EMEA, LA only)
Quick Setup Guide
Notes:
The system dimensions may vary depending on configurations.
The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Ports
Rear Ports:
1x HDMI 1.4
1x VGA
1x Power Connector
